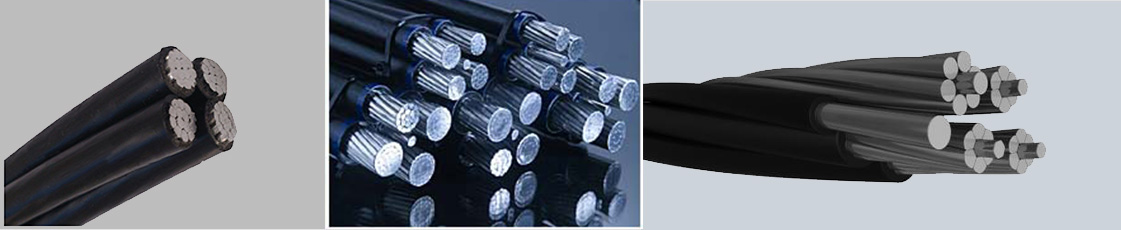

Aerial bundle cable ( Self-supporting overhead cable ), applied for electric power distribution in low voltage metropolitan, suburban and rural networks, for public lighting and house connections. Laid on pillars, consoles and house fronts

Technical data:

Temperature range:

During installation:                                      -5 °C

During operation:                                          -30 °C Up to +80 °C

At short circuit of max.                                 Max. +130

Ambient temperature at storage:                  up to 40 °C

Nominal voltage:                                           Uο/U = 0.6/1 KV

Test voltage:                                                  core/core 4.0 KV AC for 5 Min

10.0 KV AC for 15 Min

Minimal inner bending radius:                     12 X Cable Φ

Maximum permitted operating
voltage in 3-phase systems:                          1.2KV



Size	Phase		Neutral			lighting		Holder Part			Final Product
	Aloy	Insulation Thickness	Aloy	Insulation Thickness	Aloy		Insulation Thickness	Aloy	Insulation Thickness	Approx. Diameter	Approx. Net Weight	Electrical Resistance	Nominal Breaking Load
mm2	mm	mm	Nxmm2	mm	Nxmm2		mm	Nxmm2	mm	mm	kg/km	Ω/km	kgf
3×35+35+25+25	7×2.60	1.6	7×2.60	1.6	7×2.20		1.4	7×1.93	1.2	29	806	0.868	33.8
3×50+50+25+25	7×3.00	1.6	7×3.00	1.6	7×2.20		1.4	7×1.93	1.2	30	964	0.641	33.8
3×70+70+25+25	19×2.20	1.8	19×2.20	1.8	7×2.20		1.4	7×1.93	1.2	33	1259	0.443	33.8
3×95+95+25+25	19×2.60	1.8	19×2.60	1.8	7×2.20		1.4	7×1.93	1.2	37	1619	0.320	33.8
3×120+120+25+25	19×2.83	1.8	19×2.83	1.8	7×2.20		1.4	7×1.93	1.2	41	1896	0.253	33.8
1×25+25+16+16	7×2.20	1.4	7×2.20	1.4	7×1.72		1.2	7×1.57	1.2	21	397	1.20	21.35
1×35+35+16+25	7×3.00	1.6	7×3.00	1.6	7×1.72		1.2	7×1.93	1.2	22	469	0.868	33.8
1×16+16+16	7×1.72	1.2	7×1.72	1.2	7×1.72		1.2	7×1.57	1.2	18	262	1.91	21.35
1×25+25+16	7×2.20	1.4	7×2.20	1.4	7×2.20		1.4	7×1.57	1.2	20	329	1.20	21.35
